Protocol Overview

There are two main types of messages on the Asterisk Manager Interface: manager events and manager actions.

Manager events are one-way messages sent from Asterisk to AMI clients to report something that has occurred on the system. See Figure 20.1, “Manager events” for a graphical representation of the transmission of manager events.

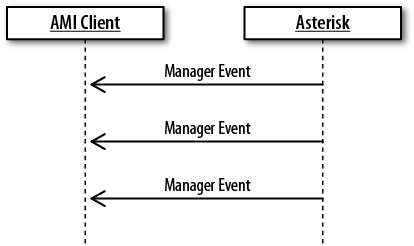

Figure 20.1. Manager events

Manager events

Manager actions are requests from a client that have associated responses that come back from Asterisk. That is, a manager action may be a request that Asterisk perform some action and return the result. For example, there is an AMI action to originate a new call. See Figure 20.2, “Manager actions” for a graphical representation of a client sending manager actions and receiving responses.

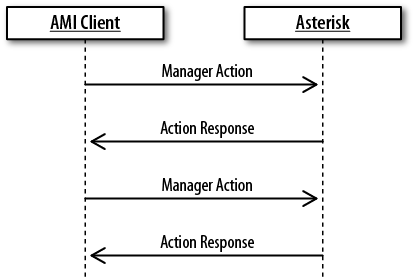

Figure 20.2. Manager actions

Manager actions

Other manager actions are requests for data that Asterisk knows about. For example, there is a manager action to get a list of all active channels on the system: the details about each channel are delivered as a manager event. When the list of results is complete, a final message will be sent to indicate that the end has been reached. See Figure 20.3, “Manager actions that return a list of data” for a graphical representation of a client sending this type of manager action and receiving a list of responses.

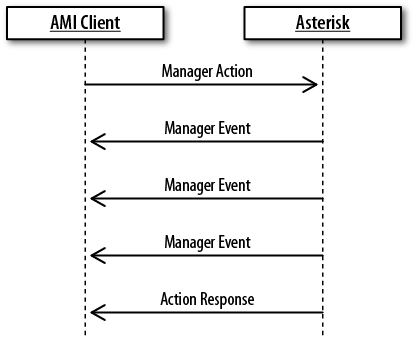

Figure 20.3. Manager actions that return a list of data

Manager actions that return a list of data

Message Encoding

All AMI messages, including manager events, manager actions, and manager action responses, are encoded in the same way. The messages are text-based, with lines terminated by a carriage return and a line-feed character. A message is terminated by a blank line:

Header1: This is the first header<CR><LF>
Header2: This is the second header<CR><LF>
Header3: This is the last header of this message<CR><LF>
<CR><LF>

Events

Manager events always have an Event header and a Privilege header. The Event header gives the name of the event, while the Privilege header lists the privilege levels associated with the event. Any other headers included with the event are specific to the event type. Here’s an example:

          Event: Hangup
Privilege: call,all
Channel: SIP/0004F2060EB4-00000000
Uniqueid: 1283174108.0
CallerIDNum: 2565551212
CallerIDName: Russell Bryant
Cause: 16
Cause-txt: Normal Clearing

Actions

When executing a manager action, it must include the Action header. The Action header identifies which manager action is being executed. The rest of the headers are arguments to the manager action. Some headers are required.

Tip

To get a list of the headers associated with a particular manager action, type manager show command <Action> at the Asterisk command line. To get a full list of manager actions supported by the version of Asterisk you are running, enter manager show commands at the Asterisk CLI.

The final response to a manager action is typically a message that includes the Response header. The value of the Response header will be Success if the manager action was successfully executed. If the manager action was not successfully executed, the value of the Response header will be Error. For example:

Action: Login
Username: russell
Secret: russell

Response: Success
Message: Authentication accepted

AMI over HTTP

In addition to the native TCP interface, it is also possible to access the Asterisk Manager Interface over HTTP. Programmers with previous experience writing applications that use web APIs will likely prefer this over the native TCP connectivity.

Authentication and session handling

There are two methods of performing authentication against the AMI over HTTP. The first is to use the Login action, similar to authentication with the native TCP interface. This is the method that was used in the quick-start example, as seen in the section called “AMI over HTTP”. The second authentication option is HTTP digest authentication.[166] The next three sections discuss each of the AMI over HTTP encoding options. To indicate that HTTP digest authentication should be used, prefix the encoding type with an a.

Once successfully authenticated, Asterisk will provide a cookie that identifies the authenticated session. Here is an example response to the Login action that includes a session cookie from Asterisk:

$ curl -v "http://localhost:8088/rawman?action=login&username=hello&secret=world"

* About to connect() to localhost port 8088 (#0)
*   Trying 127.0.0.1... connected
* Connected to localhost (127.0.0.1) port 8088 (#0)
> GET /rawman?action=login&username=hello&secret=worlda HTTP/1.1
> User-Agent: curl/7.19.7 (x86_64-pc-linux-gnu) libcurl/7.19.7
OpenSSL/0.9.8k zlib/1.2.3.3 libidn/1.15
> Host: localhost:8088
> Accept: */*
>
< HTTP/1.1 200 OK
< Server: Asterisk/1.8.0-beta4
< Date: Tue, 07 Sep 2010 11:51:28 GMT
< Connection: close
< Cache-Control: no-cache, no-store
< Content-Length: 55
< Content-type: text/plain
< Cache-Control: no-cache;
< Set-Cookie: mansession_id="0e929e60"; Version=1; Max-Age=60
< Pragma: SuppressEvents
<

Response: Success
Message: Authentication accepted
* Closing connection #0

/rawman encoding

The rawman encoding type is what has been used in all the AMI over HTTP examples in this chapter so far. The responses received from requests using rawman are formatted in the exact same way that they would be if the requests were sent over a direct TCP connection to the AMI.

/manager encoding

The manager encoding type provides a response in simple HTML form. This interface is primarily useful for experimenting with the AMI. Here is an example Login using this encoding type:

$ curl -v "http://localhost:8088/manager?action=login&username=hello&secret=world"

* About to connect() to localhost port 8088 (#0)
*   Trying 127.0.0.1... connected
* Connected to localhost (127.0.0.1) port 8088 (#0)
> GET /manager?action=login&username=hello&secret=world HTTP/1.1
> User-Agent: curl/7.19.7 (x86_64-pc-linux-gnu) libcurl/7.19.7
OpenSSL/0.9.8k zlib/1.2.3.3 libidn/1.15
> Host: localhost:8088
> Accept: */*
>
< HTTP/1.1 200 OK
< Server: Asterisk/1.8.0-beta4
< Date: Tue, 07 Sep 2010 12:19:05 GMT
< Connection: close
< Cache-Control: no-cache, no-store
< Content-Length: 881
< Content-type: text/html
< Cache-Control: no-cache;
< Set-Cookie: mansession_id="139deda7"; Version=1; Max-Age=60
< Pragma: SuppressEvents
<

<title>Asterisk&trade; Manager Interface</title><body bgcolor="#ffffff">
<table align=center bgcolor="#f1f1f1" width="500">
<tr><td colspan="2" bgcolor="#f1f1ff"><h1>Manager Tester</h1></td></tr>
<tr><td colspan="2" bgcolor="#f1f1ff"><form action="manager" method="post">
	Action: <select name="action">
		<option value="">-----&gt;</option>
		<option value="login">login</option>
		<option value="command">Command</option>
		<option value="waitevent">waitevent</option>
		<option value="listcommands">listcommands</option>
	</select>
	or <input name="action"><br/>
	CLI Command <input name="command"><br>
	user <input name="username"> pass <input type="password" name="secret"><br>
	<input type="submit">
</form>
</td></tr>
<tr><td>Response</td><td>Success</td></tr>
<tr><td>Message</td><td>Authentication accepted</td></tr>
<tr><td colspan="2"><hr></td></tr>
* Closing connection #0
</table></body

/mxml encoding

The mxml encoding type provides responses to manager actions encoded in XML. Here is an example Login using the mxml encoding type:

$ curl -v "http://localhost:8088/mxml?action=login&username=hello&secret=world"

* About to connect() to localhost port 8088 (#0)
*   Trying 127.0.0.1... connected
* Connected to localhost (127.0.0.1) port 8088 (#0)
> GET /mxml?action=login&username=hello&secret=world HTTP/1.1
> User-Agent: curl/7.19.7 (x86_64-pc-linux-gnu) libcurl/7.19.7
OpenSSL/0.9.8k zlib/1.2.3.3 libidn/1.15
> Host: localhost:8088
> Accept: */*
>
< HTTP/1.1 200 OK
< Server: Asterisk/1.8.0-beta4
< Date: Tue, 07 Sep 2010 12:26:58 GMT
< Connection: close
< Cache-Control: no-cache, no-store
< Content-Length: 146
< Content-type: text/xml
< Cache-Control: no-cache;
< Set-Cookie: mansession_id="536d17a4"; Version=1; Max-Age=60
< Pragma: SuppressEvents
<

<ajax-response>
<response type='object' id='unknown'>
<generic response='Success' message='Authentication accepted' />
</response>
* Closing connection #0
</ajax-response>

Manager events

When connected to the native TCP interface for the AMI, manager events are delivered asynchronously. When using the AMI over HTTP, events must be retrieved by polling for them. Events are retrieved over HTTP by executing the WaitEvent manager action. The following example shows how events can be retrieved using the WaitEvent manager action. The steps are:

  1. Start an HTTP AMI session using the Login action.

  2. Register a SIP phone to Asterisk to generate a manager event.

  3. Retrieve the manager event using the WaitEvent action.

The interaction looks like this:

$ wget --save-cookies cookies.txt \
> "http://localhost:8088/mxml?action=login&username=hello&secret=world" -O -

<ajax-response>
<response type='object' id='unknown'>
    <generic response='Success' message='Authentication accepted' />
</response>
</ajax-response>


$ wget --load-cookies cookies.txt "http://localhost:8088/mxml?action=waitevent" -O -

<ajax-response>
<response type='object' id='unknown'>
    <generic response='Success' message='Waiting for Event completed.' />
</response>
<response type='object' id='unknown'>
    <generic event='PeerStatus' privilege='system,all'
             channeltype='SIP' peer='SIP/0000FFFF0004'
             peerstatus='Registered' address='172.16.0.160:5060' />
</response>
<response type='object' id='unknown'>
    <generic event='WaitEventComplete' />
</response>
</ajax-response>

[166] At the time of writing, there is a problem with HTTP digest authentication that prevents it from working properly. Issue 18598 in the Asterisk project issue tracker has been opened for this problem. Hopefully it will be fixed by the time you read this.
